HQM-1260 Vertical Machining Center

Linear guideways are professionally mounted and adjusted to guarantee superior feed accuracy and long service life.
High-speed technology with advanced servo mechanisms and can add direct drive spindle.
Excellent versatility and superb rigidity is offered-all at most competitive prices.

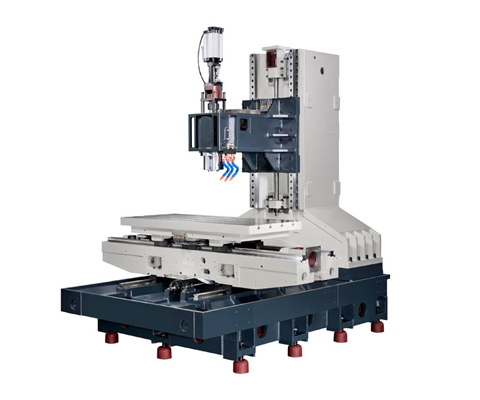

The machine adopts a box structure for the base and a trapezoid structure in the column for maximum rigidity.

Model		HQM-1260
TRAVEL	X x Y x Z axis	1,200 x 650 x 630 mm
	Spindle nose to table	100~730 mm
	Spindle center to solid column surface	700 mm
TABLE	Working area	1,350 x 600 mm
	Max. loading	880 kg
	T-Slots (No. x Width x Pitch)	4 x 18 mm x 130 mm
SPINDLE	Tool shank	BBT-40
	Speed	10,000 rpm
	Transmission	Direct-Speed Belt Drive
	Bearing lubrication	Grease
	Cooling system	Oil cooled
	Spindle motor max.rating (MITSUBISHI)	11kw (15HP)
	Spindle motor max.rating (FANUC)	11kw (15HP) / 15kw (20HP)
	Axis motor max.rating (MITSUBISHI)	2.0 / 3.5 / 3.5 kw
	Axis motor max. rating (FANUC)	2.5 / 2.5 / 2.5 kw (STD) 3.0 / 3.0 / 4.0 kw (OPT)
FEED RATES	Rapies on X & Y & Z axis(linear way)	40 / 40 / 30 m/min
FEED RATES	Max. cutting federat	15 m/min
TOOL MAGAZINE	Tool storage capacity	24 arm
	Type of tool (optional)	BBT-40 (CAT- 40)
	Max. tool diameter	76 mm
	Max. tool weight	7 kg
	Max. tool length	300 mm
AVG.CHANGING TIME (ARM)	Tool to tool	2.7 sec.
	Chip to chip (50% Z axis)	6.7 sec.
	Air source required	6 kg / c㎡ up
ACCURACY	Positioning	P 0.01 mm
ACCURACY	Repeatability	Ps 0.006 mm
DIMENSION	Machine weight	Approx 7,700 kg (arm)
	Power source required (KVA.)	20 KVA
	Floor space (L x W x H)	3,640 x 3,100 x 2,850 mm
	Shipment advice	1 x 40'HQ (1 sets)
